Siemens Power Supply PSU100D Supplier in Mumbai

Siemens Power Supply PSU100D Overview

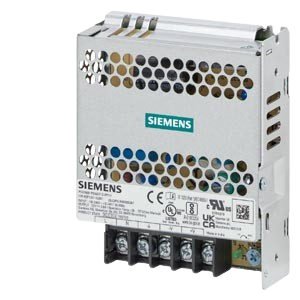

It is possible to screw the Siemens Power Supply PSU100D, a single-phase, switched-mode power supply, straight into the wall.

Siemens Power Supply PSU100D Product highlights

1-phase, 12 V DC/ 3 A and 8.5 A
Wide-range input, input voltage 90 ... 264 V

Siemens PSU100D Power Supply: Compact, Dependable, and Effective

Learn more about Siemens' PSU100D series, which is built to deliver outstanding performance and dependability to meet the needs of commercial and industrial applications. This line of products, which comprises the 6EP1322-1LD01 (24V DC, 2.5A) and 6EP1321-1LD01 (24V DC, 1.3A), provides effective and portable answers to your power supply requirements.

Important features:

High efficiency: guarantees little energy loss and lower operational expenses.
Compact Design: Perfect for control cabinets and confined spaces, this housing saves space.
Dependable Operation: Built to run continuously in industrial settings, this device is protected from overload, overvoltage, and short circuits.
Wide Input Voltage Range: Suitable for a variety of international applications (110–300V DC or 85–264V AC).
Fast Installation: Secure and simple wiring is achieved by screwing terminal connections.

Utilisation:

For machine tools, automation systems, and other industrial applications needing reliable 24V DC power supplies, the PSU100D series is ideal.
Select Siemens PSU100D power supply for a dependable, economical, and energy-efficient option that meets your industrial needs.

Siemens Power Supply PSU100D Technical details

Article number product brand name type of current supply	6EP1321-1LD01 PSU100D 12 V/3 A	6EP1322-1LD01 PSU100D 12 V/8.5 A
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 input
Siemens power supply network's type	1-phase AC	1-phase AC
supply voltage at AC
● The lowest rated value ● The highest rated value ● The starting value ● The full-scale value	100 V 240 V 90 V 264 V	100 V 240 V 90 V 264 V
broad range of input	Yes	Yes
Overvoltage Overload Capability	1.25 × Vin rated, 500 ms	1.25 × Vin rated, 500 ms
buffering time for the output current's rated value in the case of a minimum power outage	16 ms	9 ms
state of the mains buffering system	at Vin = 115/230 V	at Vin = 115/230 V
line frequency line frequency	50 Hz/60 Hz 47 ... 63 Hz	50 Hz/60 Hz 47 ... 63 Hz
input current ● 100 V is the rated input voltage. ● 240 V is the rated input voltage.	0.85 A 0.5 A	2.2 A 1.2 A
Inrush current limitation at a maximum temperature of 25 °C Maximum I2t value kind of fuse protection The feeder's fuse protection type	45 A 1.5 A²·s T3.15AL250V (internal) Miniature circuit breakers with characteristics of 16 A and 20 A are advised (for North America).	55 A 2.5 A²·s T4AL250V (internal) Miniature circuit breakers with characteristics of 16 A and 20 A are advised (for North America).
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 output
output voltage curve	DC voltage that is isolated and controlled	DC voltage that is isolated and controlled
output voltage at the DC rating	12 V	12 V
output voltage ● At the DC rated value at output 1,	12 V 12 V	12 V 12 V
Adjustable output voltage	Yes; via potentiometer	Yes; via potentiometer
adjustable output voltage	10.8 ... 13.2 V	10.8 ... 13.2 V
relative overall voltage tolerance	1 %	1 %
relative output voltage control accuracy ● Based on gradual input voltage fluctuations ● Based on the gradual variation of ohm loading	0.5 % 0.5 %	0.5 % 0.5 %
voltage peak ● maximum	120 mV	120 mV
display version for regular use	Green LED for 12 V OK	Green LED for 12 V OK
output voltage behaviour upon turning on	Overshoot of Vout < 10 %	Overshoot of Vout < 10 %
response delay maximum	1 s	0.5 s
duration of the output voltage increase ● maximum	30 ms	30 ms
output current ● rated value ● rated range	3 A 0 ... 3 A; +50 ... +70 °C: Derating 2.0%/K	8.5 A 0 ... 8.5 A; +50 ... +70 °C: Derating 2.0%/K
	2.6 ... 4.9 A	5.1 ... 9.9 A
provided active power in a typical Equipment bridging	35 W No	100 W No
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 effectiveness
efficiency as a percentage	86 %	87.5 %
power loss [W] ● typically at the rated output voltage for the rated output current	5.7 W	14.22 W
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 closed-loop management
relative control accuracy of the resistive load's output voltage load step Typical 50/100/50 percent	10 %	10 %
setting time ● Typical load step 50 to 100% ● Typical load step: 100 to 50%	4 ms 4 ms	4 ms 4 ms
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 safeguarding and observing
The overvoltage protection's design	< 17.4 V	< 17.4 V
The output's short-circuit proof property	Yes	Yes
Short-circuit protection design	Automatic restart and electronic shutdown	Automatic restart and electronic shutdown
Electronic shutdown and automatic restart	3.3 ... 5.25 A	9.35 ... 14.88 A
RMS value for sustaining short circuit current ● typical	4 A	9 A
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 security
separation of the input and output galvanically	Yes	Yes
isolation by galvanic	Extra low output voltage for safety Vout based on EN 62368-1	Extra low output voltage for safety Vout based on EN 62368-1
protection class for operating resources	Class I	Class I
current leakage ● maximum	0.5 mA	0.5 mA
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 EMC
standard ● for interference released ● for limitation of primary harmonics ● for interference immunity	EN 55032 Class B IEC 61000-3-2 EN 55035	EN 55032 Class B IEC 61000-3-2 Class A EN 55035
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 approvals, standards, and specifications
certificate of appropriateness ● CE marking ● UL approval ● CSA approval ● UKCA marking ● EAC approval ● NEC Class 2	Yes Indeed; cURus (UL 62368-1, CSA C22.2 NO 62368-1-14), File E151273; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus (UL 62368-1, CSA C22.2 NO 62368-1-14), File E151273 Yes No No	Yes Indeed; cURus (UL 62368-1, CSA C22.2 NO 62368-1-14), File E151273; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 Indeed; cURus (UL 62368-1, CSA C22.2 NO 62368-1-14), File E151273; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 Yes No No
certification type ● BIS ● CB-certificate	Yes; R-611003204 Yes	Yes; R-611003204 Yes
MTBF at 25 °C	700 000 hours; SR-332 indicates that the input voltage is 115 V/230 V AC and the load is 100% full (12 V, 3 A).	700 000 hours; SR-332 states that the input voltage is 115 V/230 V AC and the load is 100% full (12 V, 8.5 A).
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 Hazardous environments, norms, approvals, and specifications
certificate of appropriateness ● IECEx ● ATEX ● ULhazloc approval ● cCSAus, Class 1, Division 2 ● FM registration	No No No No No	No No No No No
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 maritime classification, standards, approvals, and requirements
approbation of shipbuilding	No	No
Association for Marine Classification ● ABS stands for American Bureau of Shipping Europe Ltd. ● Society for French Marine Classification (BV) ● Veritas Det Norske (DNV) ● LRS, or Lloyds Register of Shipping	No No No No	No No No No
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 approvals, standards, and specifications Declaration of Environmental Products
Declaration of Environmental Products	Yes	Yes
Potential for Global Warming [CO2 eq] ● total ● During the production process ● While in operation ● After death	181.8 kg 3.4 kg 178.3 kg 0.05 kg	450.7 kg 5.7 kg 444.8 kg 0.09 kg
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 environmental circumstances
temperature of the surroundings ● during operation ● during transport ● during storage	It is not advised to install the device on low thermal conductive surfaces, such as plastics, in temperatures between -25 and +70 degrees Celsius with natural convection. -40 ... +85 -40 ... +85	It is not advised to install the device on low thermal conductive surfaces, such as plastics, in temperatures between -25 and +70 degrees Celsius with natural convection. -40 ... +85 -40 ... +85
maximum relative humidity and condensation as defined by IEC 60068-2-38	20... 90% in the absence of condensation	20... 90% in the absence of condensation
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 mode of connecting
kind of electrical connection	screw terminal	screw terminal
● at input	For 0.75... 2 mm² single-core/finely stranded, L, N, and PE each have one screw terminal.	For 0.75... 2 mm² single-core/finely stranded, L, N, and PE each have one screw terminal.
● at output	Each screw termination is 0.75... 2 mm².	Each screw termination is 0.75... 2 mm².
● For supplementary contacts	-	-
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 mechanical information
dimensions of the enclosure: width, height, and depth	82 mm × 29 mm × 99 mm	97 mm × 30 mm × 129 mm
method of fastening ● Normal rail mounting ● S7 rail installation ● wall mounting	Wall mounting No No Yes	Wall mounting No No Yes
net weight	0.17 kg	0.29 kg
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 more details
other information	Details at the ambient temperature of +25 °C and the rated input voltage (unless otherwise noted)	Details at the ambient temperature of +25 °C and the rated input voltage (unless otherwise noted)
siemens power supply psu100d 6EP1321-1LD01 and 6EP1322-1LD01 details about security
security information	Siemens offers industrial cybersecurity solutions to protect plants, systems, machines, and networks. Customers must implement and maintain robust security measures, use up-to-date products, and apply updates promptly.	Siemens offers industrial cybersecurity solutions and advises customers to maintain robust security measures, use updated products, and apply updates promptly.

Siemens Power Supply PSU100D MLFB No. and Description

MLFB	Description
6EP13211LD01	Siemens PSU100D 12 V/3 A stable power supply with an output of 12 V DC/3 A and an input of 100-240 V AC
6EP13221LD01	Siemens Stabilised power supply PSU100D 12 V/8.5 A input: 100-240 V AC output: 12 V DC/8.5 A
