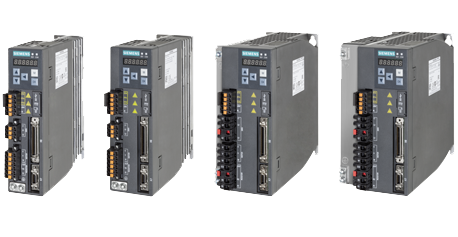

SIEMENS VFD-V90

Ideal servo drive option for applications involving motion control: V90 of SINAMICS

DISTRIBUTOR SIEMENS-VFD-V90-IN-NASHIK Numerous applications can make use of SINAMICS V90's pulse train version (pulse/direction, analogue, USS/Modbus RTU) or PROFINET version.

In addition to internal and pulse train location, the SINAMICS V90 pulse train version offers modes for controlling torque and speed.DISTRIBUTOR SIEMENS VFD V90 IN NASHIK

Because SINAMICS V90's PROFINET version is compatible with PROFINET, an automation system can connect to the drive via PROFIdrive profile.

With integrated real-time auto tuning and automatic machine resonance suppression, the system self-optimizes to provide high dynamic performance and flawless operation.

For ordering and selection details, please refer to the "System overview" and "SINAMICS V90 basic servo drive system" sections on page 1/10.SI

Advantages

Pulse train input @ 1 MHz; advanced one-button adjusting devices and real-time auto tuning to achieve a high level of dynamic performance
Automatic resonance suppression of machines;
Different kinds of encoders

Economical

Integrated control modes include those for locating internally using a traversing block or Modbus, controlling torque and speed, and positioning pulse trains.
An incorporated braking resistor with a maximum motor power of 0.2 kW is included with all frame sizes.
Integrated switch for holding brakes

Easy to use

simple to integrate with a control system;
straightforward, coming from a single source
Optimisation of simple machines;
basic servo adjustment;
straightforward SINAMICS V-ASSISTANT commissioning;
traightforward integration using PTI, PROFINET, USS, and Modbus RTUS; and straightforward parameter cloning

consistent output

High-quality motor bearings There is an IP65 level of protection included with every motor.
having an oil seal and an inbuilt safe torque off (STO)

Product MLFB Numbers And Details

MLFB	ITEM NAME
6SL3210-5FB10-1UA2	SIEMENS: SINAMICS V90 Voltage input: 1/3 phases, 200–240 V AC, -15%/+10% A 45–66 1.5/2.5 Output voltage: 0 to input voltage: 1.2 A, motor output: 0-330 Hz, 0.1 kW IP20 Size A, 45 x 170 x 170 (WxHxD), protection level
6SL3210-5FB10-1UF2	SIEMENS: outfitted with PROFINET V90 of SINAMICS Voltage input: 1/3 phases of 200–240 V AC, -15%/+10% A 45–66 1.5/2.5 Output voltage: 0 to input voltage: 1.2 A, motor output: 0-330 Hz, 0.1 kW IP20 is the protection level. 45 x 170 x 170 (WxHxD) is size A.
6SL3210-5FB10-2UA2	SIEMENS: SINAMICS V90 Voltage input: 1/3 phases, -15%/+10%, 200–240 V AC 3.0/1.8 A 45–66 Output voltage: 0 to Voltage input: 1.4 A, 0.2 kW motor, 0-330 Hz IP20 Size A, 45 x 170 x 170 (WxHxD), protection level
6SL3210-5FB10-2UF2	SIEMENS: outfitted with PROFINET V90 of SINAMICS Voltage input: 1/3 phases, -15%/+10%, 200–240 V AC 3.0/1.8 A 45–66 Output voltage: 0 to Voltage input: 1.4 A, 0.2 kW motor, 0-330 Hz IP20 is the protection level. 45 x 170 x 170 (WxHxD) is size A.
6SL3210-5FB10-4UA1	SIEMENS: SINAMICS V90 Voltage input: 1/3 phases, -15%/+10%, 200–240 V AC 5.0/3.0 A 45–66 Hz Output voltage: 0-Input voltage 2.6 A between 0 and 330 Hz Engine output: 0.4 kW Level of protection: IP20 Size B, 55 x 170 x 170 (W x H x D).
6SL3210-5FB10-4UF1	SIEMENS: SINAMICS V90 with PROFINET Voltage input: 1/3 phases, -15%/+10%, 200–240 V AC 5.0/3.0 A 45–66 Hz Output voltage: 0-Input voltage 2.6 A between 0 and 330 Hz Engine output: 0.4 kW Level of protection: IP20 Size B, 55 x 170 x 170 (W x H x D).
6SL3210-5FB10-8UA0	SIEMENS: SINAMICS V90 Voltage input: 1/3 phases, -15%/+10%, 200–240 V AC 10.4 A / 5.0 A 45–66 0 - Input 4.7 A at 0-330 Hz 0.75 kW motor; voltage output IP20 Size C protection level; 80x170x195 (WxHxD) in dimensions.
6SL3210-5FB10-8UF0	SIEMENS: SINAMICS V90 with PROFINET Voltage input: 1/3 phases, -15%/+10%, 200–240 V AC 45–66 10.4 A / 5.0 A 0 - Input 4.7 A at 0-330 Hz 0.75 kW motor; voltage output IP20 Size C protection level; 80x170x195 (WxHxD) in dimensions.
6SL3210-5FB11-0UA1	SIEMENS: SINAMICS V90 Voltage input: 3-P -15%/+10%, 200–240 V 7.0 A 45–66 Hz Output voltage: 0-330 Hz, input voltage: 6.3 A 1 kW of power Protection level: IP20 Size D, dimensions (WxHxD): 95x170x195.
6SL3210-5FB11-0UF1	SIEMENS: SINAMICS V90 with PROFINET Voltage input: 3-P, -15%/+10%, 200–240 V 7.0 A 45–66 Hz Output voltage: 0-330 Hz, input voltage: 6.3 A 1 kW of power Protection level: IP20 Size D, dimensions (WxHxD): 95x170x195.
