Siemens VFD MM420 Supplier in Bangalore

Siemens vfd dealer, supplier, authorised distributor in mumbai, bangalore, ahmedabad, pune, kolkata,

Configurator for Drive Technology

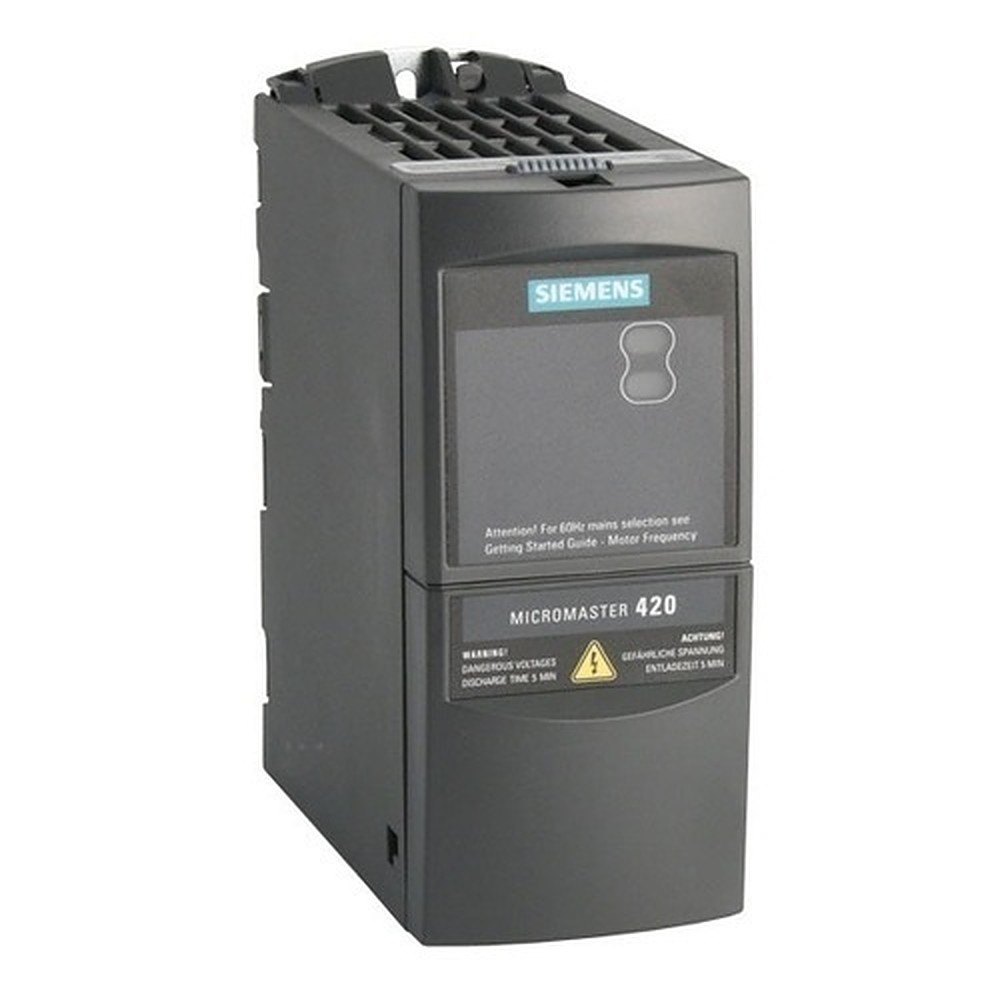

SIEMENS VFD-MM420

Product description for Siemens VFD MM420

Electric motor speed and torque can be controlled with the high-quality Siemens VFD (Variable Frequency Drive) MM420 motor control device. Its advanced features and dependable performance have allowed it to find use in a variety of industrial areas, from energy management to manufacturing. The MM420 VFD is renowned for its energy efficiency, precise control, and intuitive interface.

Features

Compact Design:

Due to its tiny design, the MM420 VFD can be installed in spaces that are limited in size. Its adaptability and use in various industries are improved by this property.

Precise Motor Control:

Precise control over motor torque and speed is provided by the VFD. It gives operators the ability to tailor motor performance to the unique needs of their application, which improves efficiency and lessens motor wear and tear.

Wide Power Range:

Because the MM420 series comes in a variety of power ratings, customers can choose the model that best suits their motor's needs. This adaptability fits different kinds and sizes of motors.

Energy Efficiency:

The MM420 VFD from Siemens provides energy-saving features. The variable frequency drive (VFD) lowers operating expenses and energy consumption by modifying the motor speed to fit the load.

Integrated Safety:

One important consideration for industrial equipment is safety. In order to ensure the longevity of the VFD and the attached motor, the MM420 incorporates safety features such motor overload protection, short circuit protection, and over-temperature protection.

Intuitive Interface:

The VFD has an easy-to-use interface that makes programming and monitoring simpler. Through the interface, users can conveniently adjust parameters, monitor motor performance, and troubleshoot problems.

Communication Interfaces:

The MM420 can be easily integrated into industrial automation systems because it supports a number of communication protocols. Remote control, data collecting, and monitoring are made easier by this connectivity.

Application Versatility:

The MM420 VFD can be customised for a broad range of applications, including pumps, fans, conveyors, and other motor-driven systems, increasing its applicability for a variety of industries.

Easy Installation:

The MM420 was created with user-friendliness in mind by Siemens. The VFD's easy installation procedure and thorough instructions guarantee that users may quickly have it up and running.

Product MLFB Numbers And Details

MLFB	ITEM NAME
6SE64202AD222BA1	MICROMASTER 420 WITH BUILT-IN CLASS A FILTER 3AC 380 480V +10 10% 47 63HZ SIEMENS VFD MM420 PERMANENT TORQUE 2.2 KW OF POWER AND 150% OVERLOAD FOR 60 S CHANGEABLE 2.2 KW of torque, dimensions 202 x 149 x 172 [H x W x D] W O AOP BOP PROTECTION IP20 AMBIENT TEMP 10 TO +50 DEG C
6SE64202AD230BA1	MICROMASTER 420 WITH BUILT-IN CLASS A FILTER 3AC 380 480V +10 10% 47 63HZ SIEMENS VFD MM420 PERMANENT TORQUE POWER 3 KW, 150% OVERLOAD FOR 60 S CHANGEABLE 3.0 KW 202 X 149 X 172 [H X W X D] TORQUE POWER W O AOP BOP PROTECTION IP20 AMBIENT TEMP 10 TO +50 DEG C
6SE64202AD240BA1	MICROMASTER 420 WITH BUILT-IN CLASS A FILTER 3AC 380 480V +10 10% 47 63HZ SIEMENS VFD MM420 PERMANENT TORQUE POWER 4 KW, 150% OVERLOAD FOR 60 S CHANGEABLE H X W X D 202 X 149 X 172 TORQUE POWER 4 KW W O AOP BOP PROTECTION IP20 AMBIENT TEMP 10 TO +50 DEG C
6SE64202AD255CA1	MICROMASTER 420 WITH BUILT-IN CLASS A FILTER 3AC 380 480V +10 10% 47 63HZ SIEMENS VFD MM420 PERMANENT TORQUE 5.5 KW POWER OVERLOAD 150% FOR 60 S CHANGEABLE TORQUE POWER 5.5 KW [H X W X D] 245 X 185 X 195 W O AOP BOP PROTECTION IP20 AMBIENT TEMP 10 TO +50 DEG C
6SE64202AD275CA1	MICROMASTER 420 WITH BUILT-IN CLASS A FILTER 3AC 380 480V +10 10% 47 63HZ SIEMENS VFD MM420 PERMANENT TORQUE 7.5 KW POWER OVERLOAD 150% FOR 60 S CHANGEABLE TORQUE POWER 7.5 KW [H X W X D] 245 X 185 X 195 W O AOP BOP PROTECTION IP20 AMBIENT TEMP 10 TO +50 DEG C
6SL36SE64202AD311CA1	MICROMASTER 420 WITH BUILT-IN CLASS A FILTER 3AC 380 480V +10 10% 47 63HZ SIEMENS VFD MM420 PERMANENT TORQUE 11 KW OF POWER OVERLOADING 150% FOR 60 S CHANGEABLE 11 KW of torque, dimensions 245 x 185 x 195 [H x W x D] W O AOP BOP PROTECTION IP20 AMBIENT TEMP 10 TO +50 DEG C
6SE6430-2UD33-7EA0	Without a filter, Micromaster 430 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 37 KW OVERLOAD 110% 60 S, 140% 3 S 650 X 275 X 245 (H X W X D)
6SE6430-2UD34-5EA0	Micromaster 430 - SQUARED TORQUE POWER 45 KW OVERLOAD 110% 60 S, 140% 3 S 650 X 275 X 245 (H X W X D) 380-480 V +10/-10% 47-63 HZ WITHOUT A FILTER 3AC
6SE6430-2UD35-5FA0	Asymmetric micromaster 430 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 55 KW OVERLOAD 110% 60 S, 140% 3 S 850 X 350 X 320 (H X W X D)
6SE6430-2UD37-5FA0	Asymmetric micromaster 430 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 75 KW OVERLOAD 110% 60 S, 140% 3 S 850 X 350 X 320 (H X W X D)
6SE6430-2UD38-8FA0	Asymmetric micromaster 430 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 90 KW OVERLOAD 110% 60 S, 140% 3 S 850 X 350 X 320 (H X W X D)
6SE6430-2UD41-1FA0	SQUARED TORQUE OF MICROMASTER 430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ 110 KW of power, 110% 59 S overload, 150% 1 S, and dimensions of 1400 x 326 x 356 (H x W x D) 0 TO +40 DEG C PROTECTION IP20 AMBIENT TEMP. WITHOUT AOP/BOP SERVICE BY SPARE PART
6SE6430-2UD41-3FA0	SQUARED TORQUE OF MICROMASTER 430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ POWER 132 KW; OVERLOAD 110% 59 S; 150% 1 S; MEASUREMENTS H X W X D: 1400 X 326 X 356 0 TO +40 DEG C PROTECTION IP20 AMBIENT TEMP. WITHOUT AOP/BOP SERVICE BY SPARE PART
6SE6430-2UD41-6GA0	SQUARED TORQUE OF MICROMASTER 430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ 160 KW OF POWER, 110% 59 S, 150% 1 S, 1533 X 326 X 545 (H X W X D) is the overload. 0 TO +40 DEG C PROTECTION IP20 AMBIENT TEMP. WITHOUT AOP/BOP SERVICE BY SPARE PART
6SE6430-2UD42-0GA0	SQUARED TORQUE OF MICROMASTER 430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ 200 KW OF POWER WITH 110% OVERLOAD 59 S, 150% 1533 x 326 x 545 (H x W x D) in one S 0 TO +40 DEG C PROTECTION IP20 AMBIENT TEMP. WITHOUT AOP/BOP SERVICE BY SPARE PART
6SE6430-2UD42-5GA0	SQUARED TORQUE OF MICROMASTER 430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ 250 KW of power, 110% 59 S, 150% 1 S, 1533 X 326 X 545 (H X W X D) overload. 0 TO +40 DEG C PROTECTION IP20 AMBIENT TEMP. WITHOUT AOP/BOP SERVICE BY SPARE PART
