The best product Siemens has ever created, the SIEMENS SINAMICS G120 is packed with features and is made to satisfy the needs of machine manufacturers looking for a cost-effective, compact, and easy-to-use frequency converter. With its modular design, this frequency converter finds application in a multitude of drive applications. Three voltage variations for the revised converter series are now offered for connection to power supply networks at 200 V, 400 V, and 690 V.

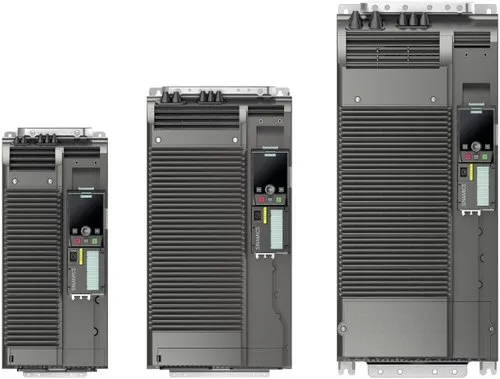

A modular, closed-loop vector drive with high levels of integrated safety, energy efficiency, and network connectivity is the Siemens SINAMICS G120 frequency converter. It comes with power ratings ranging from 0.37 to 250 kW and three voltage options for connections to 200, 400, and 690V.
The Siemens Sinamic G120 VFD is distinguished by its quick installation and commissioning times, user-friendly connections, and sophisticated strength density combined with its user-friendly commissioning tools. Because of the modular design of the components and their broad power range of 0.55 to 250 kW, you can always create the perfect converter for the particular applications and industry area in question.
The greatest service for automation products is offered by SIEMENS GRUPS Automation Stockists and Dealers. The increasing need for automation across various industries has led to the standardisation of work and increased efficiency in working technologies. Standard service is provided by our dealers around the nation, and we have received great feedback from clients in major cities such as Hyderabad, Chennai, New Delhi, Bangalore, Mumbai, Pune, and so on.
| MLFB | ITEM NAME |
|---|---|
| 6SL32240BE137UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT ELEVATE OVERLOAD: 0.37 KW FOR 200% 3S, 150% 57S, 100,000 240S Ambient temperature: -10 to +50 degrees Celsius, 173 x 73 x 145 (HXWXD), (6SL3224-0BE13-7UA0) |
| 6SL32240BE155UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT ELEVATE OVERLOAD: 0.55KW FOR 200% 3S, 150% 57S, 100% 240S Ambient temperature: -10 to +50 degrees Celsius, 173 x 73 x 145 (HXWXD), (6SL3224-0BE15-5UA0) |
| 6SL32240BE175UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT ELEVATE OVERLOAD: 0.75KW FOR 200% 3S, 150% 57S, 100% 240S Ambient temperature: -10 to +50 degrees Celsius, 173 x 73 x 145 (HXWXD), (6SL3224-0BE17-5UA0) |
| 6SL32240BE211UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT ELEVATE OVERLOAD: 1,1 KW FOR 200% 3 S, 150% 57 S, 100% 240 S Ambient temperature: -10 to +50 degrees Celsius, 173 x 73 x 145 (HXWXD), (6SL3224-0BE21-1UA0) |
| 6SL32240BE215UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT OVERLOAD: UP TO 1,5KW FOR 200% 3S, 150% 57S, AND 100% 240S AMBIENT TEMP HXWXD, 6SL3224-0BE21-5UA0, 173 X 73 X 145, -10 TO +50 DEG C |
| 6SL32240BE222AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT FILTER HIGH OVERLOAD: 2,2 KW FOR 150% 57 S, 100% 240 S, and 200% 3 S. AMBIENT TEMP : 270 x 153 x 165 (HXWXD), [6SL3224-0BE22-2AA0], -10 TO +50 DEG C |
| 6SL32240BE222UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT HIGH OVERLOAD: 2,2 KW FOR 150% 57 S, 100% 240 S, and 200% 3 S. AMBIENT TEMP: -10 TO +50 DEG C; 6SL3224-0BE22-2UA0; 270 x 153 x 165 (HXWXD). |
| 6SL32240BE230AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT FILTER 3.0 KW FOR 200% 3S, 150% 57S, 100% 240S HIGH OVERLOAD AMBIENT TEMP : 270 x 153 x 165 (HXWXD), FROM -10 TO +50 DEG C (6SL3224-0BE23-0AA0) |
| 6SL32240BE230UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT 3.0 KW FOR 200% 3S, 150% 57S, 100% 240S HIGH OVERLOAD ORIGINAL TEMP -10 TO +50 DEG C, 270 x 153 x 165 (HXWXD), (6SL3224-0BE23-0UA0) |
| 6SL32240BE240AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT FILTER OVERLOAD HIGH: 4,0KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP: -10 TO +50 DEG C; dimension: 270 x 153 x 165 (HXWXD); (6SL3224-0BE24-0AA0) |
| 6SL32240BE240UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT OVERLOAD HIGH: 4,0KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP: -10 TO +50 DEG C; HXWXD; 270 x 153 x 165; (6SL3224-0BE24-0UA0) |
| 6SL32240BE255AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER 3AC380-480V +10/-10% BUILTD INTO THE FILTER 47–63 Hz Output EXTREME OVERLOAD: 5,5KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT Light overload: 7.5 KW for 150% 3S, 110% 57S, 100% 240S; ambient temperature range: -10 to +40 DEG C; dimensions: 334 x 189 x 185 (HXWXD); FSC (6SL3224-0BE25-5AA0...). |
| 6SL32240BE255UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT EXTREME OVERLOAD: 5,5KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT Light overload: 7,5 KW for 150% 3S, 110% 57S, 100% 240S; ambient temperature range: -10 to +40 degrees Celsius; dimensions: 334 x 189 x 185 (HXWXD); FSC (6SL3224-0BE25-5UA0). |
| 6SL32240BE275AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT FILTER ELEVATE OVERLOAD: 7.5KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT Light overload: 11 KW for 150% 3S, 110% 57S, 100% 240S; ambient temperature range: -10 to +40 degrees Celsius; dimensions: 334 x 189 x 185 (HXWXD); FSC (6SL3224-0BE27-5AA0). |
| 6SL32240BE275UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT ELEVATE OVERLOAD: 7.5KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT Light overload: 11 KW for 150% 3S, 110% 57S, 100% 240S; ambient temperature range: -10 to +40 degrees Celsius; dimensions: 334 x 189 x 185 (HXWXD); FSC (6SL3224-0BE27-5UA0). |
| 6SL32240BE311AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER 3AC380-480V +10/-10% BUILTD INTO THE FILTER 47–63 Hz OUTPUT ELEVATED OVERLOAD: 11KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LIGHT OVERLOAD: FSC (6SL3224-0BE31-1AA0), 15KW FOR 150% 3S, 110% 57S, 100% 240S AMBIENT TEMP -10 TO +40 DEG C 334 X 189 X 185 (HXWXD) |
| 6SL32240BE311UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT A MAXIMUM OF 11KW FOR 200% 3S, 150% 57S, AND 100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LIGHT OVERLOAD: FSC (6SL3224-0BE31-1UA0), 15KW FOR 150% 3S, 110% 57S, 100% 240S AMBIENT TEMP -10 TO +40 DEG C 334 X 189 X 185 (HXWXD) |
| 6SL32240BE315AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER-INSIDE FILTER 3AC380-480V +10/-10% 47-63HZ OUTPUT ELEVATED OVERLOAD: 15KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT 18% 5S, 110% 57S, 100% 240S AMBIENT TEMP 0 TO +40 DEG C, 512 x 275 x 204 (HXWXD), 18,5KW LIGHT OVERLOAD |
| 6SL32240BE315UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT A MAXIMUM OF 15KW FOR 200% 3S, 150% 57S, AND 100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT C 419 X 275 X 204 (HXWXD), (6SL3224-0BE31-5UA0), AMBIENT TEMP 0 TO +40 DEG, LIGHT OVERLOAD: 18,5KW FOR 150% 3S,110% 57S,100% 240S |
| 6SL32240BE318AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT FILTER EXTREME OVERLOAD: 18.5KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT 22KW FOR 150% 3S, 110% 57S, 100% 240S AMBIENT TEMP 0 TO +40 DEG C 512 X 275 X 204 (HXWXD), PRECAUTION FOR LIGHT OVERLOAD |
| 6SL32240BE318UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT ELEVATE OVERLOAD: 18.5 KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT 22KW FOR 150% 3S, 110% 57S, 100% 240S AMBIENT TEMP 0 TO +40 DEG C 419 X 275 X 204 (HXWXD), 6SL32240BE31-8UA0, LIGHT OVERLOAD |
| 6SL32240BE322AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER-INSIDE FILTER 3AC380-480V +10/-10% 47-63HZ OUTPUT ELEVATED OVERLOAD: 22KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT 30KW for 150% 3S, 110% 57S, and 100% 240S AMBIENT TEMP 0 TO +40 DEG C 512 X 275 X 204 (HXWXD), 6SL3224-0BE32-2AA0, LIGHT OVERLOAD |
| 6SL32240BE322UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT EXTREME OVERLOAD: 22KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT 30 KW FOR 150% 3S, 110% 57S, 100% 240S AMBIENT TEMP 0 TO +40 DEG C 419 X 275 X 204 (HXWXD), 6SL3224-0BE32-2UA0, LIGHT OVERLOAD |
| 6SL32240BE330AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER-INSIDE FILTER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: AMBIENT TEMP 0 TO +50 DEG C OUTPUT: 30KW FOR 200% 3S, 150% 57S, 100% 240S Light overload: 37KW for 150% 3S, 110% 57S, 100% 240S; ambient temperature range: 0 to +40 DEG C; dimensions: 635 x 275 x 204 (HXWXD); fault signal (6SL3224-0BE33-0AA0). |
| 6SL32240BE330UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT TEMPORARY TEMP 0 TO +50 DEG C HIGH OVERLOAD: 30KW FOR 200% 3S, 150% 57S, 100% 240S OUTPUT Light overload: 37KW for 150% 3S, 110% 57S, 100% 240S; ambient temperature range: 0 to +40 degrees Celsius; dimensions: 497 x 275 x 204 (HXWXD); Fujitsu (6SL3224-0BE33-0UA0). |
| 6SL32240BE337AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER 3AC380-480V +10/-10% BUILTD INTO THE FILTER 47–63 Hz OUTPUT OVERLOAD HIGH: 37KW FOR 200% 3S, 150% 57S, 100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT 45KW FOR 150% 3S, 110% 57S, 100% 240S AMBIENT TEMP 0 TO +40 DEG C 635 X 275 X 204 (HXWXD), FSE (6SL3224-0BE33-7AA0) LIGHT OVERLOAD |
| 6SL32240BE337UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT Elevated Overload: 37 KW for 200% 3S, 150% 57S, 100% 240S; Ambient Temperature: 0 to +50°C OUTPUT 45KW FOR 150% 3S, 110% 57S, 100% 240S AMBIENT TEMP 0 TO +40 DEG C 497 X 275 X 204 (HXWXD), FSE (6SL3224-0BE33-7UA0) LIGHT OVERLOAD |
| 6SL32240BE345AA0 | Built-in CL power module for Siemens Siemens Sinamics G120 AC drive power module PM240. A BRAKING CHOPPER-INSIDE FILTER 3AC380-480V +10/-10% 47-63HZ OUTPUT EXTREME OVERLOAD: 45KW FOR 200% 3S, 150% 57S, AND 100% 240S OUTPUT AMBIENT TEMP 0 TO +50 DEG C 55KW FOR 150% 3S, 110% 57S, 100% 240S LIGHT OVERLOAD FSF (6SL3224-0BE34-5AA0), AMBIENT TEMP 0 TO +40 DEG C 934 X 350 X 316 (HXWXD) |
| 6SL32240BE345UA0 | With built-in brake controller 3AC380-480V +10/-10% 47-63Hz, Siemens Sinamics G120 AC drive power module PM240 is available without filter. OUTPUT AMBIENT TEMP 0 TO +50 DEG C HIGH OVERLOAD: 45KW FOR 200% 3S, 150% 57S, 100% 240S OUTPUT LIGHT OVERLOAD: 55KW FOR 100% 240S, 110% 57S, AND 150% 3S AMBIENT TEMP 0 TO +40 DEG C 634 X 350 X 316 (HXWXD), FSF (6SL3224-0BE34-5UA0) |
| 6SL32240BE355AA0 | SIEMENS SINAMICS G120 AC DRIVE POWER MODULE PM2 |
