Siemens vfd dealer, supplier, authorised distributor in mumbai, bangalore, ahmedabad, pune, kolkata,

Configurator for Drive Technology

siemens vfd g110 dealer in chennai

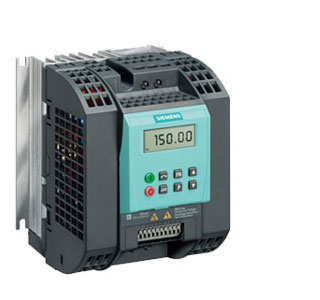

SIEMENS VFD-G110

Product description for Siemens VFD G110

A micro frequency inverter called the SINAMICS G110 is used to control the speed of three-phase AC motors. Many types are available with unmarried-phase 200v to 240v entry and power outputs ranging from 1/6hp to 4hp (120w to 3kw). For the SIEMENS SINAMICS circle of families with lower power, this low-cost frequency inverter option is ideal. It is a remarkable demand for a large kind of commercial variable pace power packages due to its covered core capacity.

The frequency inverter SIEMENS SINAMIC g110 ac strength has the best features available for a range of commercial enterprise variable-speed pressure packages. These inverters have a short duration and are microprocessor-managed. They wire and mount similarly to a contactor. Because the SINAMICS G110 use the most recent insulated gate bipolar transistor (IGBT) and microprocessor technology, they are incredibly adaptable and dependable.


Features:

A flexible variable frequency drive (VFD) with many features and advantages, the Siemens VFD G110 is available in the following categories:

Excellent results:

Applications requiring a high starting torque will benefit greatly from the VFD G110's ability to deliver up to 100% torque at 0 Hz.

Energy efficiency:

Because of its great energy efficiency, the VFD G110 helps save operational expenses.

Wide range of applications:

Fan, pump, conveyor, and machine tool applications are just a few of the many uses for the VFD G110.
Advantages: The Siemens VFD G110 has several advantages, such as:

Increased productivity:

The VFD G110's smoother operation and quicker reaction times might contribute to increased production.

Reduced energy costs:

Up to a 50% reduction in energy expenses is possible with the VFD G110.

Improved quality:

Because the VFD G110 operates more smoothly and produces less vibration, it can aid in raising the quality of the product.

Increased reliability:

The long lifespan and high reliability of the VFD G110 are designed in.

Siemens SINAMICS G110 frequency converter characteristics include:

  • unified, seamless functionality through the use of standard hardware and software platforms.
  • The same standard can be used to configure, parameterize, commission, and operate every drive.
  • High degree of adaptability and capacity for combination The ideal drive is provided by SINAMICS for each driving application.
  • Wide power range of 0.12 kW to 120 MW is available.
  • Versions with medium and low voltages are offered.
  • One common engineering standard for every drive
  • Three voltage variations for the revised converter series are now offered for connection to power supply networks at 200 V, 400 V, and 690 V.
    - STARTER for parameterization and commissioning
    - SIZER for configuration


Product MLFB Numbers And Details
MLFB ITEM NAME
6SL3211-0AB12-5UB1 EXCLUSIVE FILTER 1AC200-240V +10/-10% 47-63HZ SIEMENS SINAMICS VFD G110 - CPM110 AC-DRIVE Interface RS485 (USS-PROTOCOL) Both CT and VT are 0.25KW. CT-O/L: 150 X 90 X 116 (HXWXD) 150% 60S OUTPUT
6SL3211-0AB13-7BA1 Built-in Class B filter 1AC200-240V +10/-10% 47-63HZ analogue input CT: 0.37KW; VT: 0.37KW SIEMENS SINAMICS VFD G110 - CPM110 AC-DRIVE CT-O/L: 150 X 90 X 116 (HXWXD) 150% 60S
6SL3211-0AB13-7BB1 Built-in Class B filter, Siemens Sinamics VFD G110-CPM110 AC-drive, 47-63 Hz, +10/-10% Interface RS485 (USS-PROTOCOL) Both CT and VT are 0.37 KW. CT-O/L: 150 X 90 X 116 (HXWXD) 150% 60S
6SL3211-0AB13-7UA1 Exclusive Filter 1AC200-240V +10/-10% 47-63HZ, Siemens VFD G110 - CPM110 AC-DRIVE CT: 0.37KW; VT: 0.37KW for the analogue input CT-O/L: 150 X 90 X 116 (HXWXD) 150% 60S
6SL3211-0AB13-7UB1 VFD G110 - CPM110 AC-DRIVE SIEMEN SINAMICS, EXCLUSIVE FILTER 1AC200-240V +10/-10% 47-63HZ Interface RS485 (USS-PROTOCOL) Both CT and VT are 0.37 KW. CT-O/L: 150 X 90 X 116 (HXWXD) 150% 60S OUTPUT
6SL3211-0AB15-5BA1 Built-in Class B filter, 1 AC200-240V +10/-10%, Siemens Sinamics VFD G110 - CPM110 AC-DRIVE Analogue input at 47-63 Hz, CT: 0.55 KW, VT: 0.55 KW CT-O/L: 150 X 90 X 131 (HXWXD) 150% 60S
6SL3211-0AB15-5BB1 Built-in class B filter, Siemens Sinamics VFD G110 - CPM110 AC-DRIVE, +10/-10% 47-63 Hz Interface RS485 (USS-PROTOCOL) Both CT and VT are 0.55KW. CT-O/L: 150 X 90 X 131 (HXWXD) 150% 60S
6SL3211-0AB15-5UA1 VFD G110 - CPM110 AC-DRIVE SIEMEN SINAMICS, EXCLUSIVE FILTER 1AC200-240V +10/-10% 47-63HZ CT: 0.55KW; VT: 0.55KW for the analogue input CT-O/L: 150 X 90 X 131 (HXWXD) 150% 60S
6SL3211-0AB15-5UB1 VFD G110 - CPM110 AC-DRIVE SIEMEN SINAMICS, EXCLUSIVE FILTER 1AC200-240V +10/-10% 47-63HZ Interface RS485 (USS-PROTOCOL) Both CT and VT are 0.55KW. CT-O/L: 150 X 90 X 131 (HXWXD) 150% 60S OUTPUT
6SL3211-0AB17-5BA1 Built-in Class B filter, Siemens Sinamics VFD G110 - CPM110 AC-DRIVE, 47-63 Hz, +10 / -10% CT: 0.75KW; VT: 0.75KW ANALOGUE INPUT CT-O/L: 150 X 90 X 131 (HXWXD) 150% 60S IP20 AMBIENT PROTECTION TEMP -10 TO +40 DEG C
6SL3211-0AB17-5BB1 Built-in Class B filter, Siemens Sinamics VFD G110-CPM110 AC-drive, 47-63 Hz, +10/-10% Interface RS485 (USS-PROTOCOL) Both CT and VT are 0.75KW. CT-O/L: 150 X 90 X 131 (HXWXD) 150% 60S IP20 AMBIENT PROTECTION TEMP -10 TO +40 DEG C
6SL3211-0AB17-5UA1 EXCLUSIVE FILTER 1AC200-240V +10/-10% 47-63HZ SIEMENS SINAMICS VFD G110 - CPM110 AC-DRIVE CT: 0.75KW; VT: 0.75KW ANALOGUE INPUT CT-O/L: 150 X 90 X 131 (HXWXD) 150% 60S IP20 AMBIENT PROTECTION TEMP -10 TO +40 DEG C
6SL3211-0AB17-5UB1 EXCLUSIVE FILTER 1AC200-240V +10/-10% 47-63HZ SIEMENS SINAMICS VFD G110 - CPM110 AC-DRIVE Interface RS485 (USS-PROTOCOL) Both CT and VT are 0.75KW. CT-O/L: 150 X 90 X 131 (HXWXD) 150% 60S IP20 AMBIENT PROTECTION TEMP -10 TO +40 DEG C INPUT
6SL3211-0AB21-1AA1 Built-in CL. A filter 1AC200-240V +10/-10% 47-63HZ analogue input CT: 1.1KW; VT: 1.1KW SIEMENS SINAMICS VFD G110 - CPM110 AC-DRIVE CT-O/L: 160 X 140 X 142 (HXWXD) 150% 60S
6SL3211-0AB21-1AB1 Built-in CL filter 1AC200-240V +10/-10% 47-63HZ RS485-INTERFACE (USS-PROTOCOL) Siemens Sinamics VFD G110 - CPM110 AC-DRIVE 1.1KW in CT; 1.1KW in VT CT-O/L: 160 X 140 X 142 (HXWXD) 150% 60S
6SL3211-0AB21-1UA1 EXCLUSIVE FILTER 1AC200-240V +10/-10% 47-63HZ SIEMENS SINAMICS VFD G110 - CPM110 AC-DRIVE CT: 1.1KW, VT: 1.1KW, ANALOGUE INPUT CT-O/L: 160 X 140 X 142 (HXWXD) 150% 60S
6SL3211-0AB21-1UB1 EXCLUSIVE FILTER 1AC200-240V +10/-10% 47-63HZ SIEMENS SINAMICS VFD G110 - CPM110 AC-DRIVE Interface RS485 (USS-PROTOCOL) 1.1KW in CT; 1.1KW in VT CT-O/L: 160 X 140 X 142 (HXWXD) 150% 60S OUTPUT
6SL3211-0AB21-5AA1 BUILT IN CL. A FILTER 1AC200-240V +10/-10% 47-63HZ ANALOGUE INPUT CT: 1.5KW; VT: 1.5KW SIEMENS SINAMICS VFD G110 - CPM110 AC-DRIVE CT-O/L: 160 X 140 X 142 (HXWXD) 150% 60S IP20 AMBIENT PROTECTION TEMP -10 TO +40 DEG C
